Service / Goods lift 1000Kg with Personnel provides an efficient goods lift including passenger transport for complete ease of use.

Capacity: 1 person

Max load: 1000 KG

Industry Sectors:

This is a standard model/configuration. We can do any bespoke type/size made to your requirements.

FULL DESCRIPTION
Specifications
OPTIONS
DATA SHEETS

The goods- / passenger lift ISO-PE easy will offer you some significant advantages and savings:
- Corrosion-proof
- Self-supporting galvanized steel structure

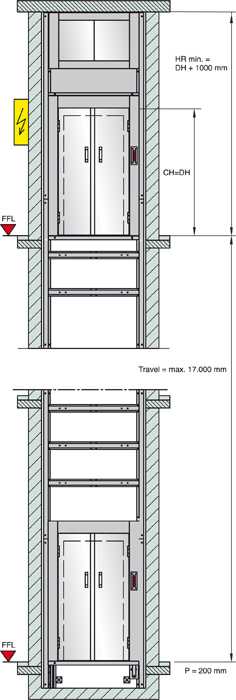

- Shaft pit depth 200 mm only
- Cabin push button with send control (Push-to-run)
- Landing push buttons with call and send control
- Machine room less lift
- Accessible spaces underneath the shaft possible
- Easy mounted steel shaft cladding available (without fire protection)
- Space saving installation - compact construction
- Pre-assebled for easy installation
- No brick shaft necessary



This lift unit complies to EU-Directive for machines and has a EU-Declaration of conformity of German TÜV Hanover / Sachsen-Anhalt e.V.

Structure

  • Self-supporting steel structure made of cold rolled profiles in galvanised finish.
  • Pre-installed with T-Guide rails T 70mm, x 65mm x 9mm
  • Compensation device on suspension elements
  • With Plate Baffles

Cabin

  • Cant-off  system made of galvanised steel
  • Adjustable guide shoes on both sides
  • Emergency Ligh
  • Sunk-in cabin Light
  • Cabin Push button station with pre-installed emergency call,  emergency light and emergency distance call.
  • Type tested safety gear
  • Push button station with key switch (push to run)

Hinged doors

  • Manual operated hinged doors, made of galvanized steel in accordance to DIN 18090, production controlled by TÜV-authorities
  • with side frames made of galvanized steel according to drawing
  • door locks type-tested by TÜV-authorities

Machine room door

  • double hinged door with sash lock
  • with side frames made of galvanized steel according to drawing
  • Drive unit
  • Drive unit with standard motor IP 54 disc brake and hand wheel, 3 x 400 V /50 Hz. according to IEC
  • Drum Ø 240 and pulleys Ø 250/200 for 2 ropes Ø 6/5 mm suspension 2:1

Controller

  • call and send control with 24 V, safety circuit 230 V
  • pre-wired with plugs
  • adjustable and time-limited despatch delay device (1-5 s)
  • acoustic arrival signal
  • position indicator on each entrance
  • thermic motor protection as main switch pre-wired on control panel
  • machine room light with socket
