NHS Hospital Bed Lift

Healthcare in the UK is changing fast.
Modern-day hospitals and private care facilities need lifts that can combine a smooth ride with reliability, toughness - and an ability to adapt to multiple uses.

Lifts Direct offer a flexible range of bed lifts developed specifically to meet the NHS trust requirements and all other relevant guidelines, including :

• EN81 and the lift directive.
• HTM2024 - Design considerations for lifts
• C42A - NHS Model engineering specification - Electric traction lifts
• C42B - NHS Model engineering specification - Hydraulic lifts

This hospital bed lift also delivers a unique combination of flexibility, durability and ride quality - all of which add up to a long, trouble-free and productive life.

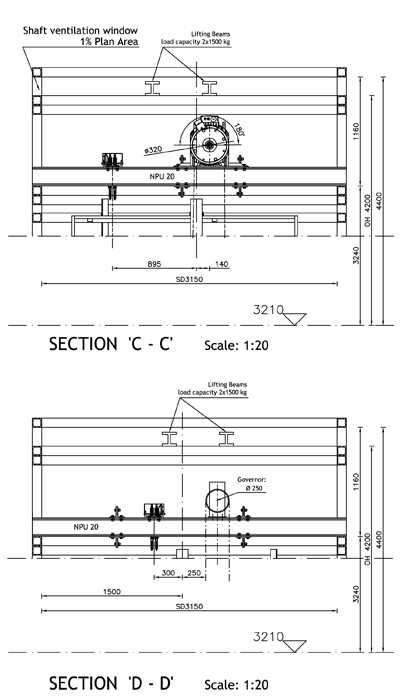

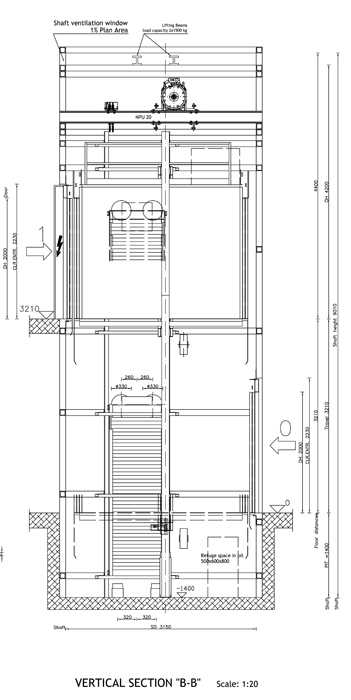

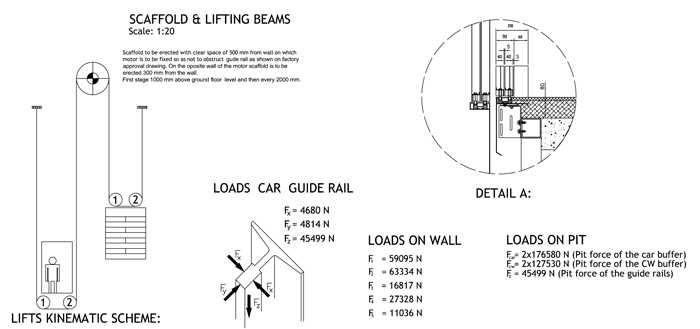

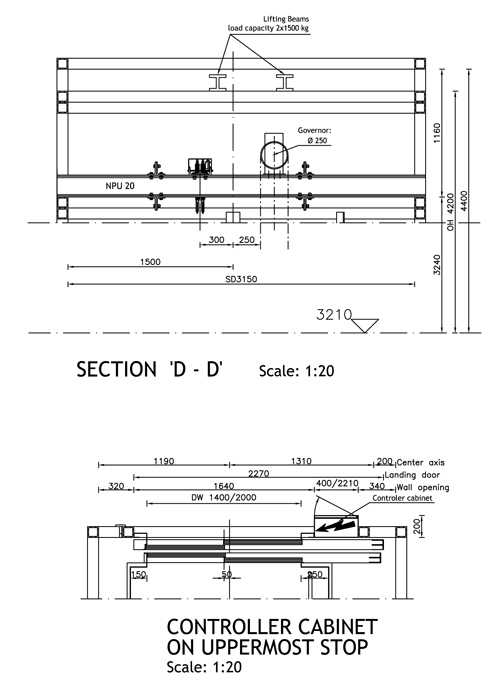

33 Person 2500Kg available on request Click here to view Diagrams

Flexibility
When it comes to healthcare, there's no such thing as a standard requirement - so it's important for any medical bed-lift to be able to adapt to suit the environment it's needed for. Our lifts can be specified to suit virtually any structure and application whether it's in a new or an existing building. This includes variable dimensions, a choice of hydraulic or traction drives and the option of a self-supporting shaft for older or more awkward buildings.

Ride quality
When moving patients who may be in pain or distress, it's vital to have a bed lift that can move them smoothly, quickly and with the minimum of disruption. That's where our bed lift's state-of-the-art control technology makes such a difference, delivering a smooth, even ride, accurate levelling and reduced travel times.

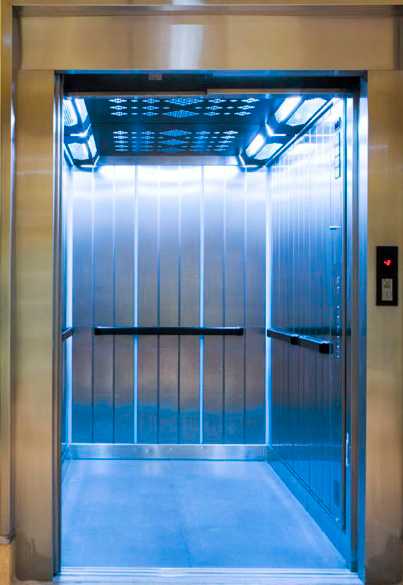

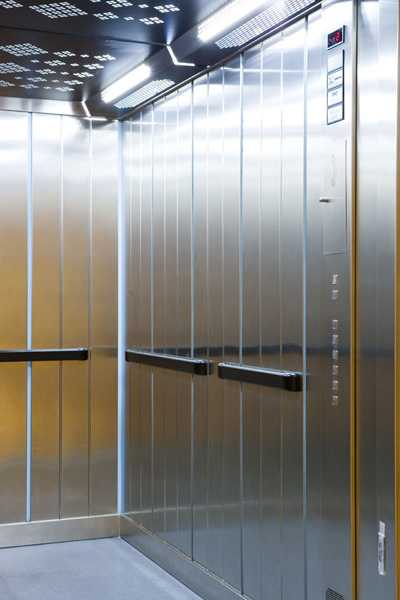

Lift car
Lifts Direct's hospital bed lifts are designed specifically for hospital use, the car can be adapted to suit any load, from light bed use to heavy motorised bed or even goods trolleys. Features include 2mm thick reinforced stainless steel front returns, a variety of robust wall finishes, crash rails available at variable heights and covered PVC slip - and water resistant floor finish over a sturdy 25mm marine plywood structure.

Suspension
Electric traction hospital bed lift models would typically be roped 2:1, with the machine located at the top of the lift shaft within a machine room. Hydraulic solutions will always be twin side-acting rams - either in a direct arrangement, or indirect acting,roped 2:1 to acheive slightly higher travel distances.
Note: traction solutions are recommended for any travel greater than 4 floors.

Drive
Traction drives are variable voltage, variable frequency, to ensure the smoothest possible ride, accurate levelling and controlled deceleration to floor levels. Hydraulic models are based on high-quality solenoid valve operation using the EV100 valve block.

Controller
Options are available to cope with every aspect of a hospital environment (including special services, fire fighting, emergency evacuation, special bed priority service and theatre control). The system can also be adapted to interface with bespoke local security systems, such as swipe card, key pad operation and infra-red remote control.

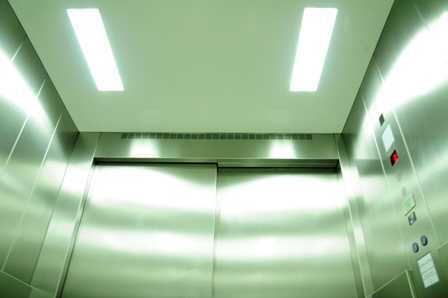

Doors
Our hospital bed lift doors are typically stainless steel (with a variable frequency door operator for fast smooth operation), car and landing doors can be adapted to suit the environment - from fire-rated glass doors to robust patterned stainless steel, with dimensions as required.

Landing fixtures
Buttons, hall lanterns and position indicators can all be adapted to suit the environment and DDA requirements. You can choose from our extensive standard range (or from other commercially-available suppliers).

Safety
Progressive safety gear comes as standard on our medical bed lifts, allowing any potential emergency situation to be securely controlled.

Our hospital bed lifts come in a variety of styles to suit your hospital needs.

Max Load: 2500 KG

Max Persons: 33

Max Speed: 1.6 m/s

Max Car Width: 1800

Max Car Depth: 2700

At Lifts Direct, we know that there is no one-size-fits-all approach when it comes to hospital bed lifts. That's why we provide a wide range of customisable options to make sure your medical bed lift fits your exact hospital needs.

Our hospital bed lifts can be created to fit virtually any structure in both new and existing buildings with a choice of traction drive or hydraulic hospital lift with the option of a self-supporting shaft if needed. We also offer a choice of wall types with water-resistant floors perfectly suited to medical environments and the option of crash rails at variable heights. In addition to this, all buttons and indicators can be adapted to suit your exact needs with controller options available to match every type of hospital need including the ability to interface with local hospital security systems such as keypad operation or swipe cards.

Whatever your hospital needs, our hospital bed lifts can be created to fit your environment for safe and secure usage for years to come.

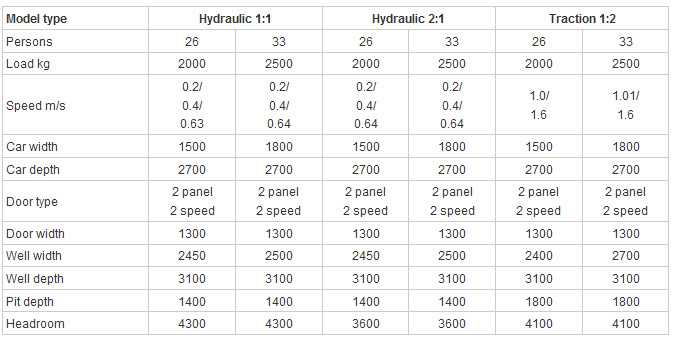

Hospital Bed Lift Data Sheet
